I. Panel Features
-

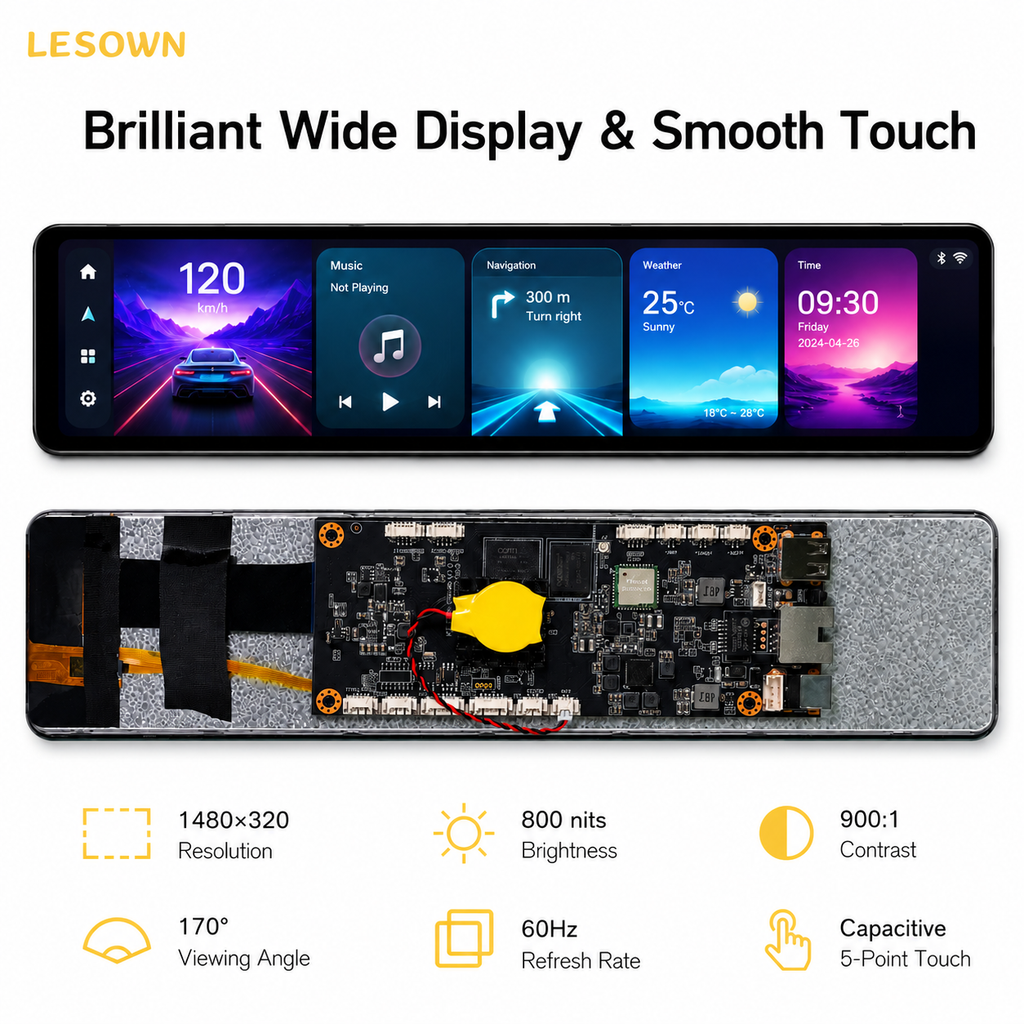

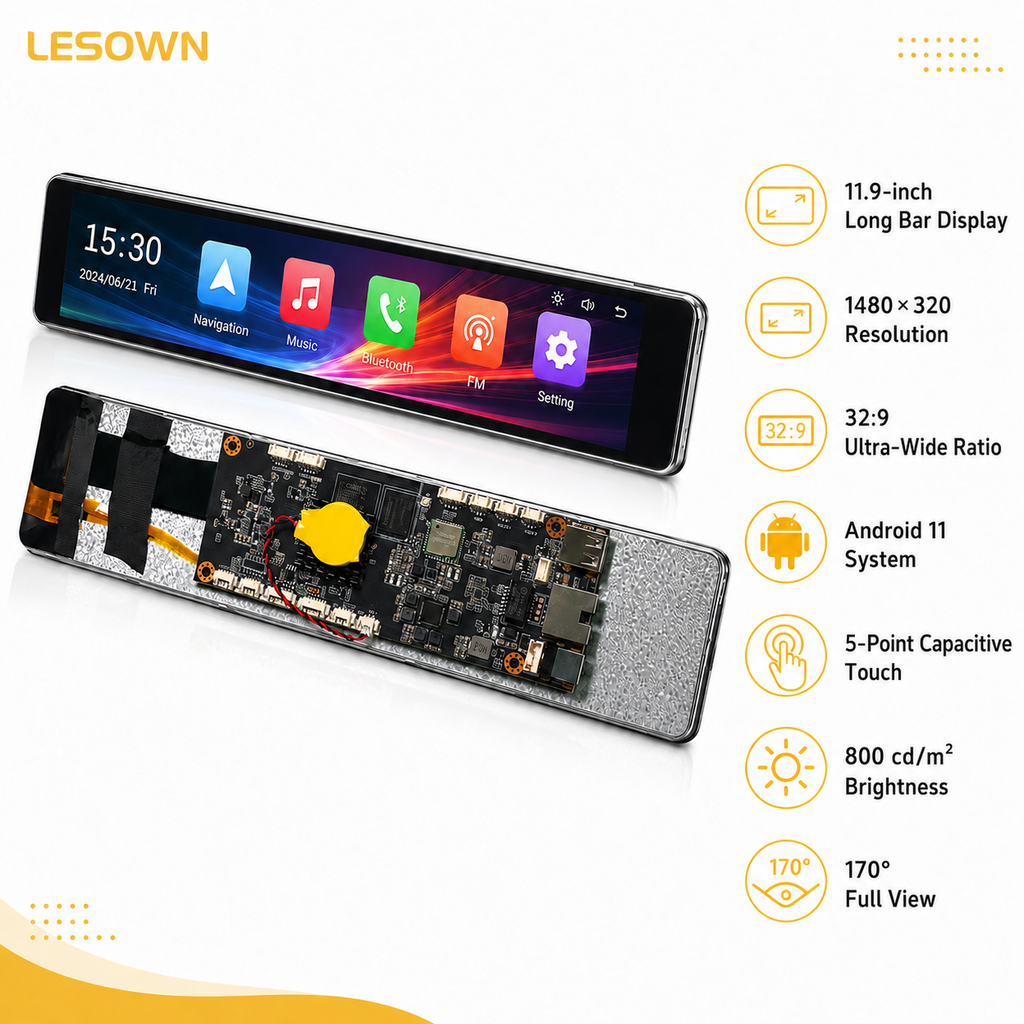

Size: 11.9 inch (Stretched / Bar Type Display)
-
Active Display Area: 268.176(W) × 57.984(H) mm
-
Resolution: 1480x320 High Definition
-
Aspect Ratio: 32:9 (Ultra-wide, perfect for smart shelves and digital signage)
-
Display Direction: Horizontal
-
Touch Panel: Capacitive 5-point multi-touch for highly responsive interactive controls.
-
Brightness: 800 cd/m² (Sunlight-readable high brightness, ensuring crystal-clear visibility even in strongly lit retail or industrial environments)
-
Contrast Ratio: 900:1
-
Viewing Angle: 170° Full View (IPS technology for uncompromised off-axis viewing)
-
Response Time: 30ms (Typ.)(Tr+Tf)
-
Frame Rate: 60Hz, ensuring smooth animations and touch feedback.

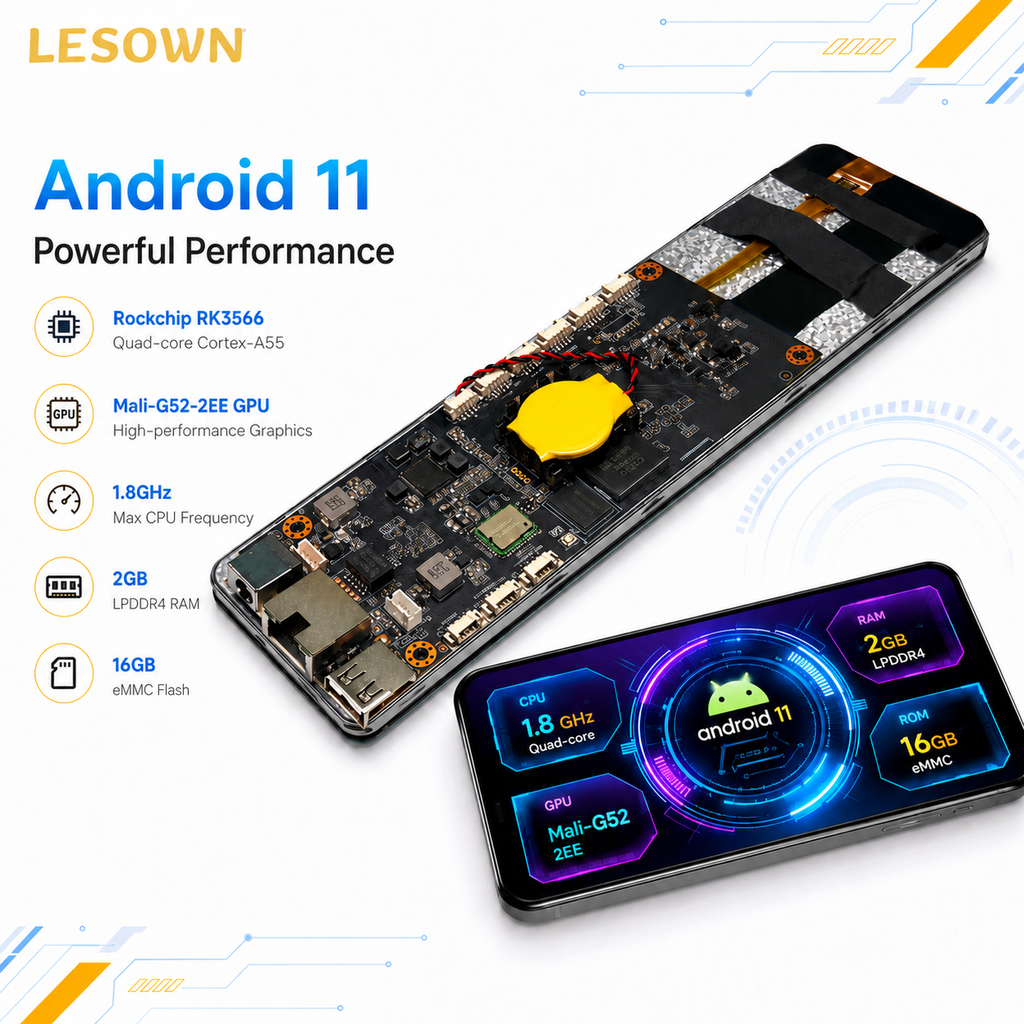

II. Core Functions & Performance
-
Operating System (OS): Android 11, providing a modern, secure, and customizable environment for commercial applications.
-
Motherboard Model: KT-R3566-MIPI
-
Processor (CPU): Rockchip RK3566 (Quad-Core), delivering robust computing power for edge processing.
-
Graphics Processor (GPU): Mali-G52-2EE, seamlessly handling rich multimedia content and dynamic UIs.
-
Main Frequency: 1.8GHz
-
System Memory (RAM): 2GB LPDDR4 for smooth multitasking operations.
-
Built-in Storage (Flash): 16GB eMMC, providing ample space for operating systems, media files, and customized APKs.

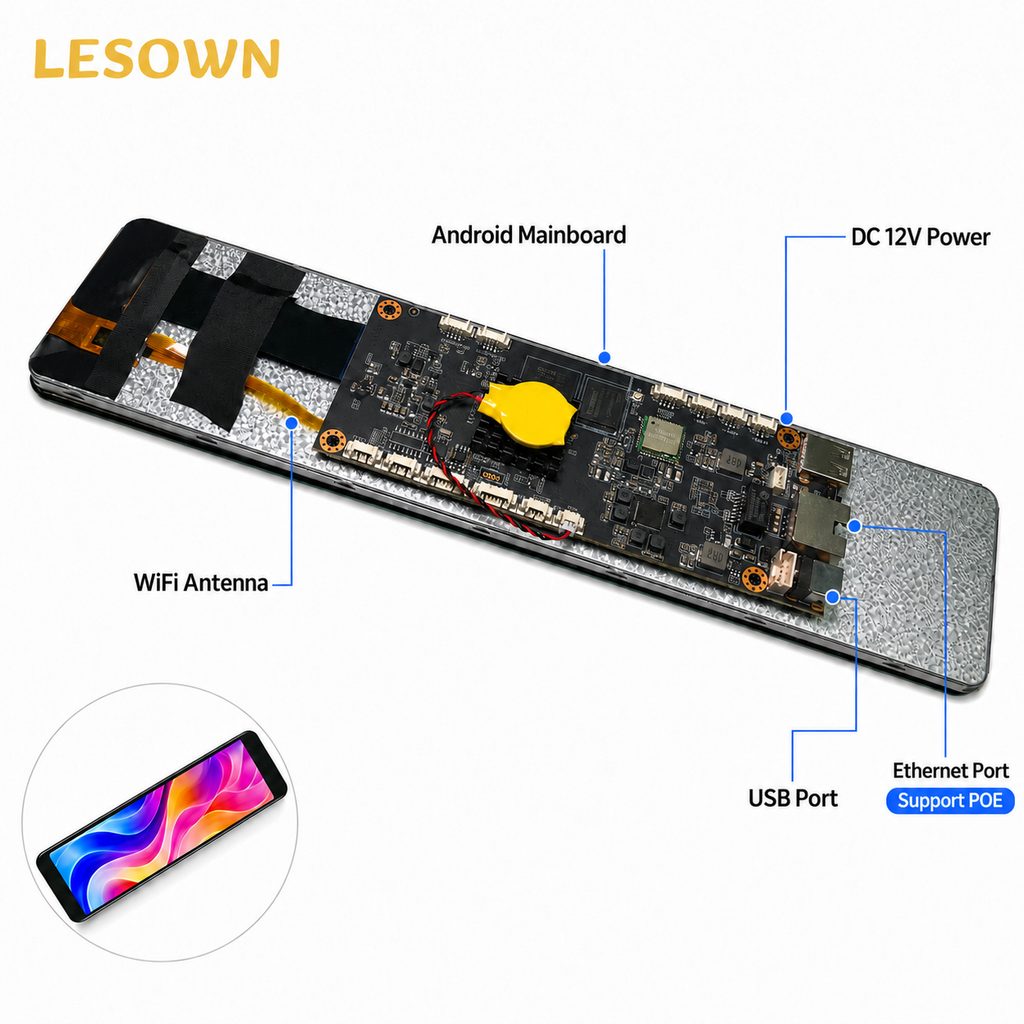

III. Connectivity & Input Ports
-
Wireless Network (WiFi): Built-in WiFi module supporting high-speed 802.11 b/g/n/ac protocols (2.4G).
-
Wired Network (Ethernet): 1x Gigabit Ethernet port supporting 100M/1000M ultra-stable wired connections.
-
Bluetooth: Fully supported for seamless pairing with beacons, wireless peripherals, and IoT sensors.
IV. Audio Features
-
Speaker Power Output: Integrated dual-channel audio amplifier.
-
Speaker Specifications: Supports Left and Right channels at 8 Ω / 2W * 2, perfect for integrating voice broadcasting, advertising audio, and interactive touch sounds directly into your project.
V. Power Characteristics
-
Power Supply: DC 12V / 1A. (Supports PoE) – Power over Ethernet capability allows you to transmit both power and data through a single standard LAN cable, significantly reducing installation costs and wiring complexity.
-
Maximum Power Consumption: 5W (Max). Highly energy-efficient design optimized for 24/7 continuous operation.
VI. Mechanical Design
-

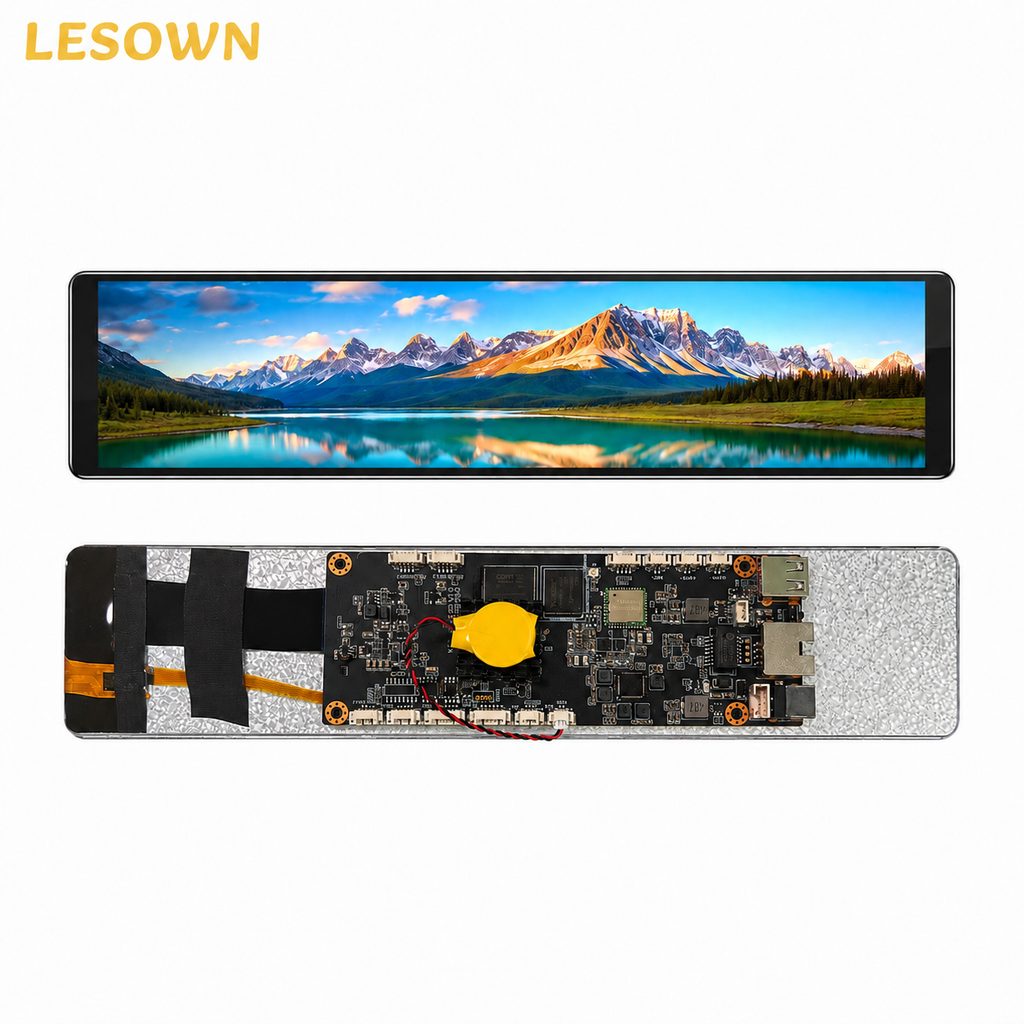

Screen Module Dimensions: 282 x 65 x 4.5 mm (Ultra-slim, stretched form factor).
-
Motherboard Dimensions: 146 x 55 x 1.6 mm.
-

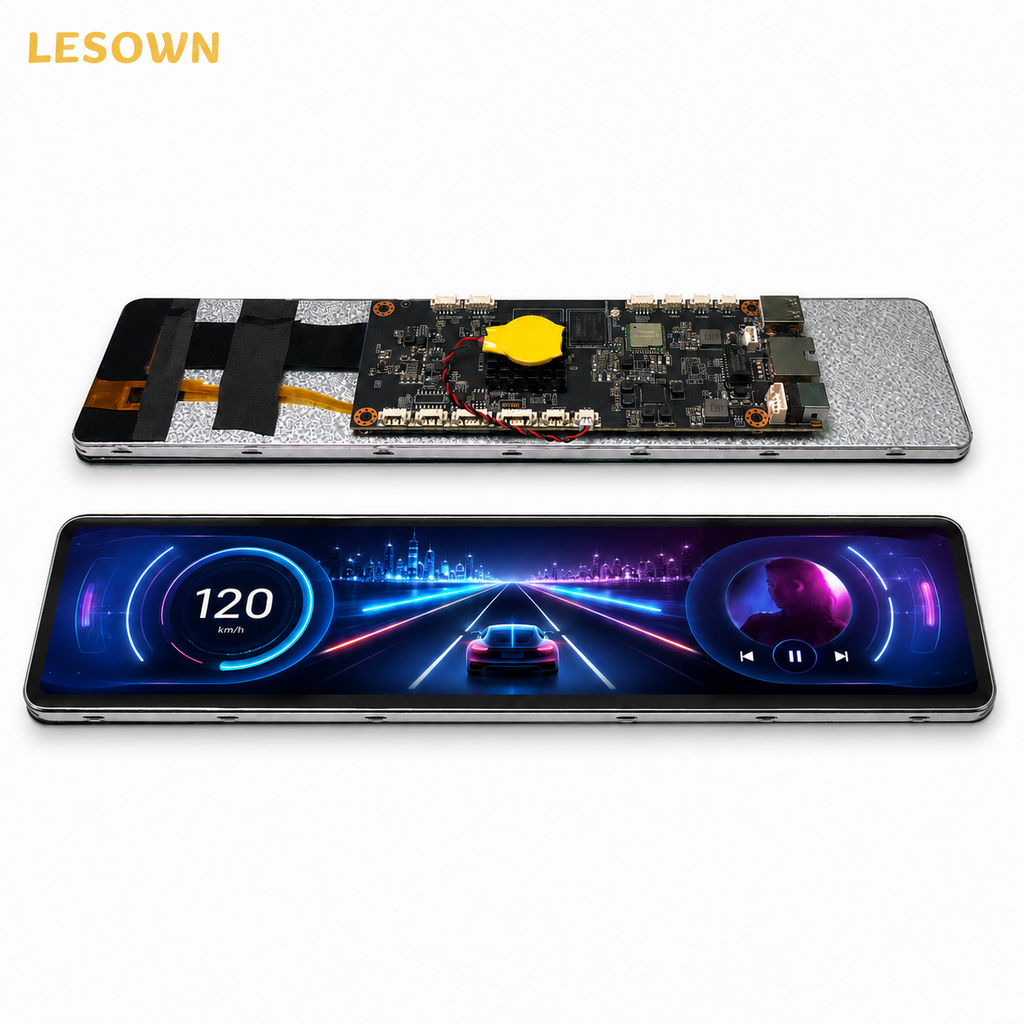

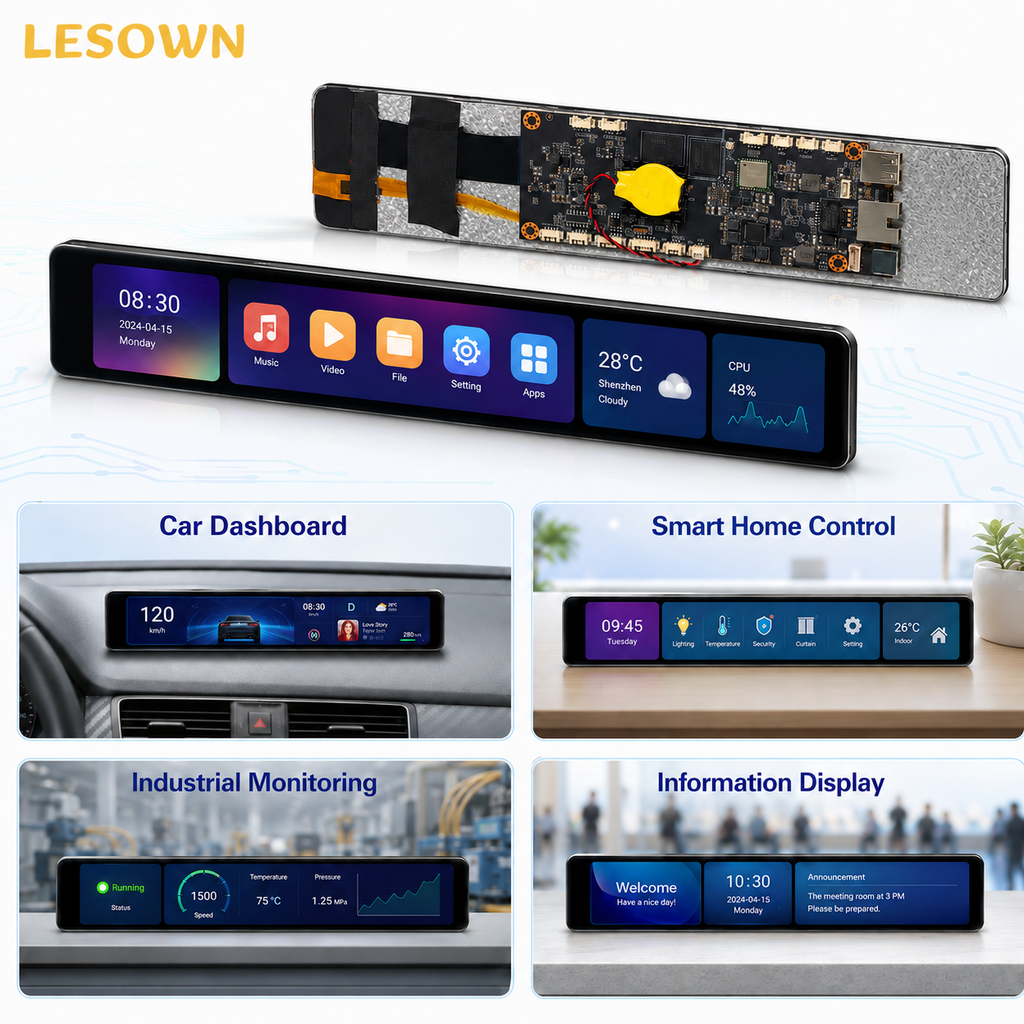

Build & Integration: The specialized bar-type design and slim motherboard make it an ideal fit for smart retail shelves, rack-mounted equipment, vehicle dashboards, and constrained industrial spaces.
VII. Product Features & Packing List
-
Innovative Stretched UI Solution: Combined with an 800-nit high-brightness screen and POE capability, this module is the ultimate plug-and-play solution for interactive shelf-edge displays, commercial advertising, and unique smart home interfaces.
-
Out-of-the-Box Development: Reduces hardware R&D time; developers can immediately begin deploying software on a stable Android architecture.
-

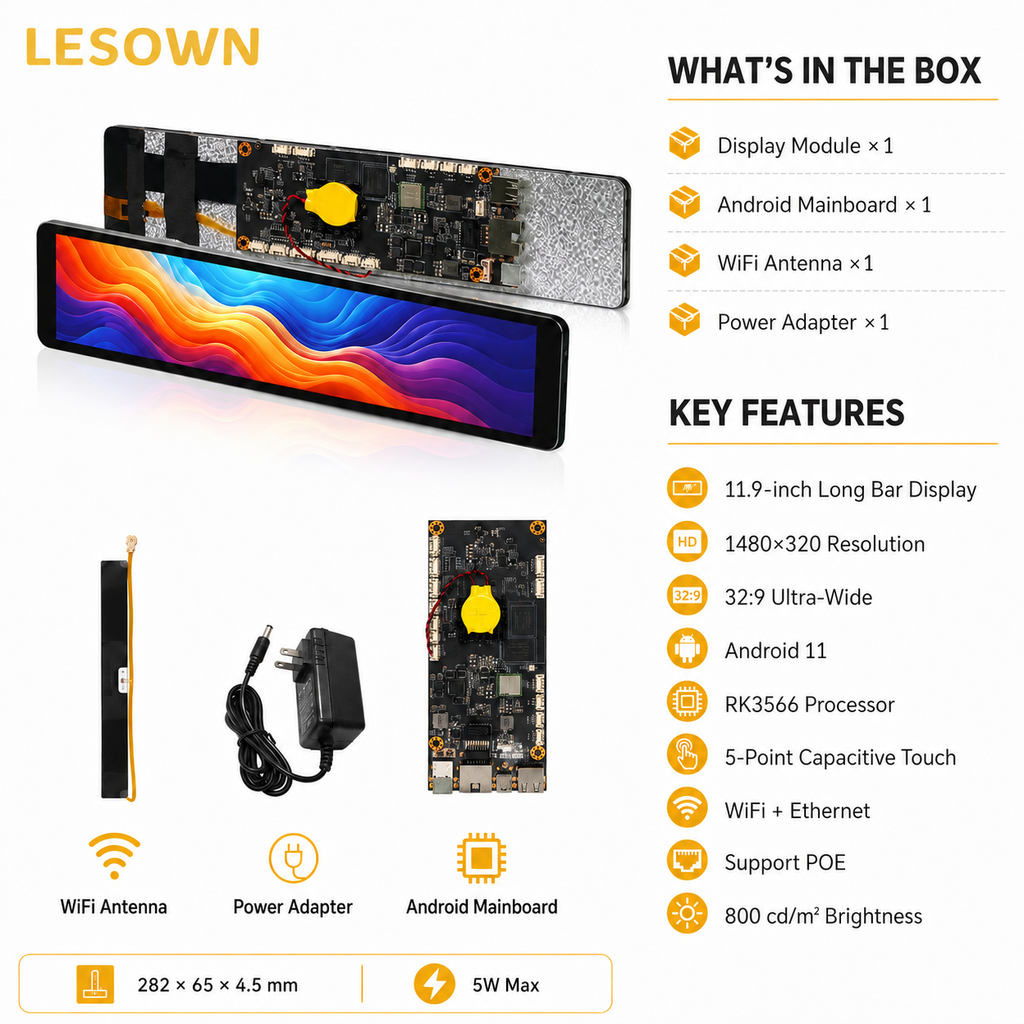

Packing List:
-
1 x 11.9-inch Ultra-Wide Touch Screen Module
-
1 x Android Smart Motherboard (KT-R3566-MIPI)
-
1 x High-Gain WiFi Antenna
-
1 x DC 12V Power Adapter
-
