Specifications:
Model: P69
Size: 6.9inch TFT-LCD
LCD Type: IPS
Resolution: 480*1280
Touch Function: No
Dot Pitch: 0.1485(H)×0.1485(V)
Signal Interface: MIPI
Refresh Rate: 60Hz
Viewing Direction: Free
View Angle: 170°Full View Angle
Size Ratio: 5:16
Response Time: 40ms(Typ.)(Tr+Tf)
Contrast Ratio: 900:1
Brightness: 500cd/m²
Outline Dimension: 78.8(W)x217.6(H)x16.5(T)mm
Active Area: 59.40(W)x190.08(H)mm
Color Gamut: 70% NTSC
Display Colors: 16.7M
Backlight: WLED(19.2V (Type.))
Connector: 30pins ZIF
Thickness: 16.5(mm)
Display Input: HDMI 1.4
Audio Out: NO

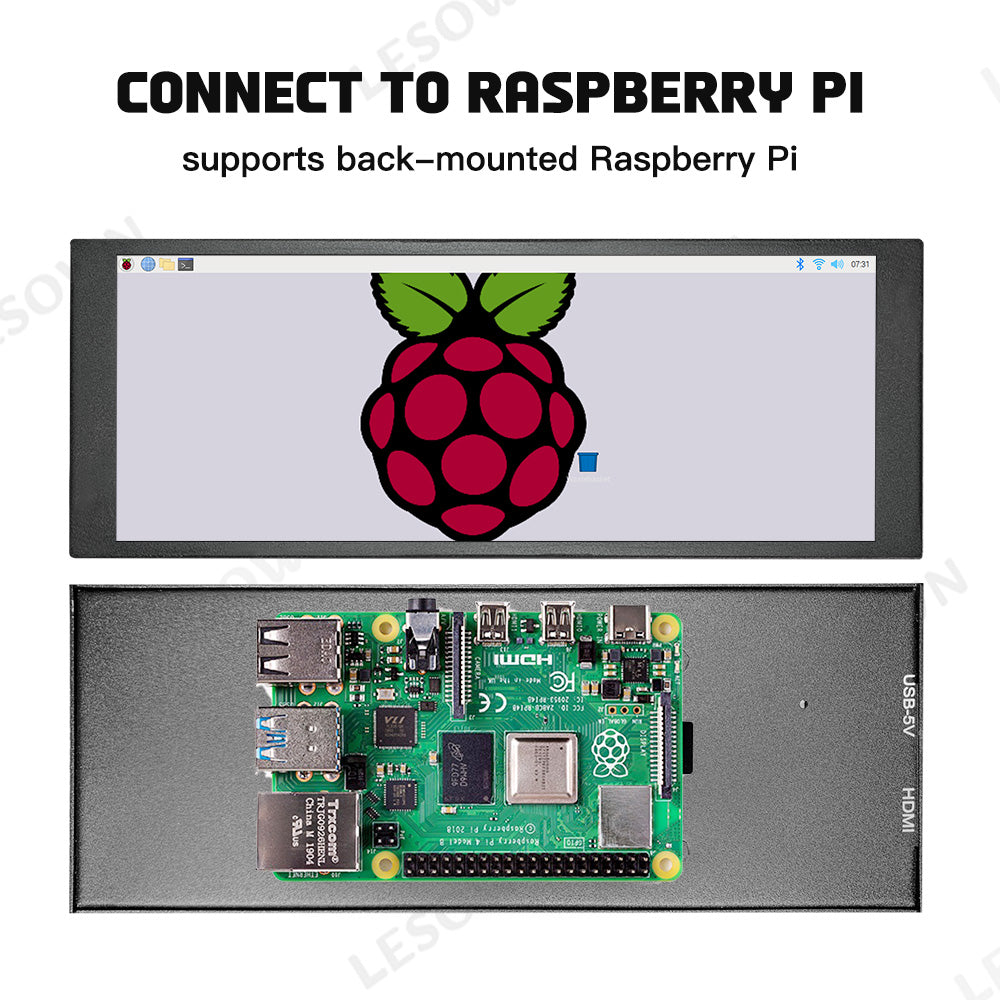

When used on Raspberry Pi, you need to modify the "config.txt"
Add the following code to the config.txt file:
max_usb_current=1
hdmi_group=2
hdmi_mode=87
hdmi_timings=400 0 100 10 140 1280 10 20 20 2 0 0 0 60 0 43000000 3
Note: If it is Raspberry Pi 4, you also need to comment out dtoverlay=vc4-fkms-V3D.

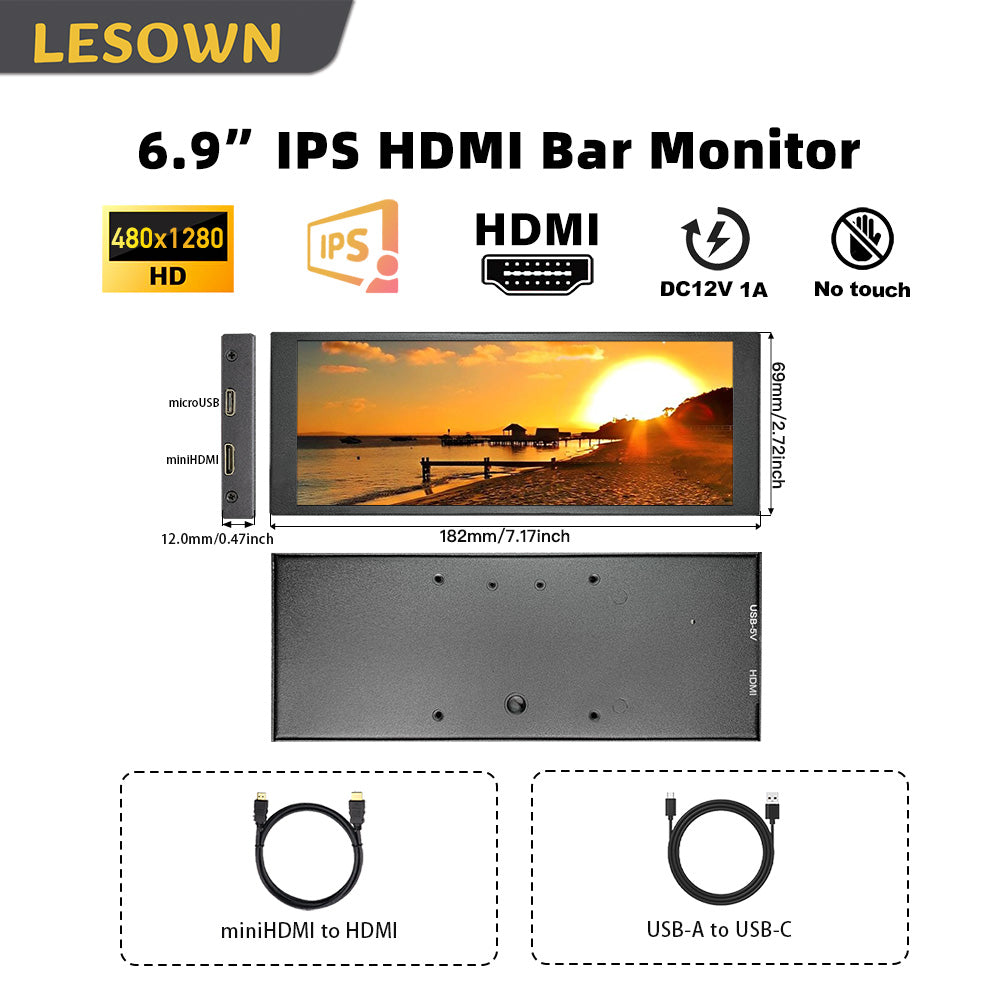

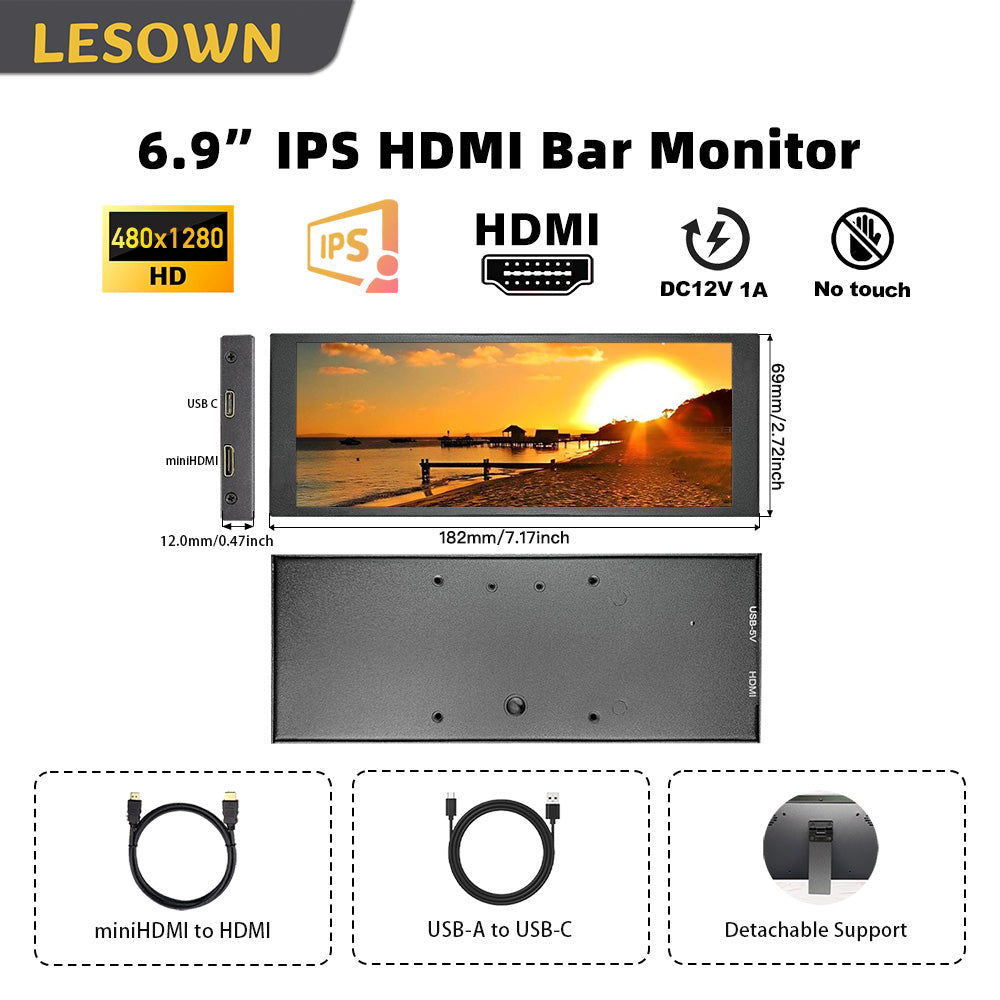

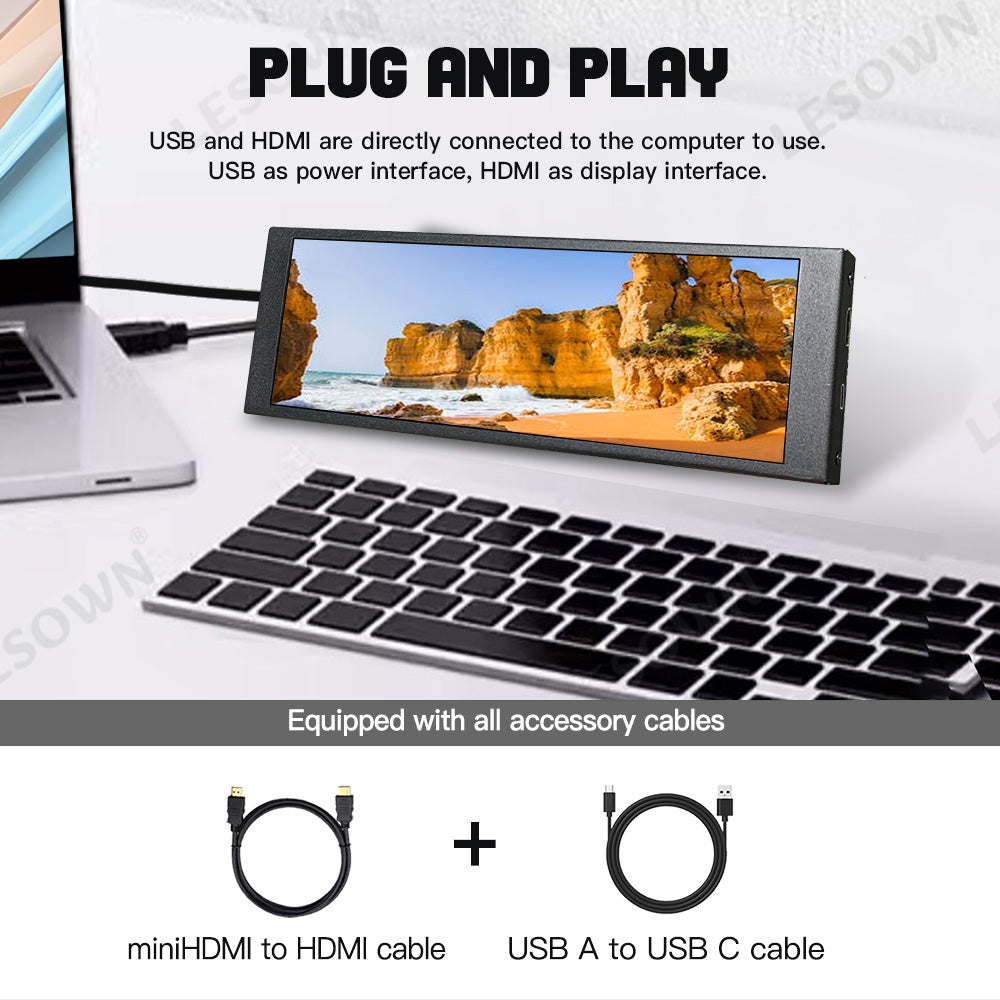

What's in the box?
1x Portable Monitor
1x USB Cable
1x HDMI Cable
