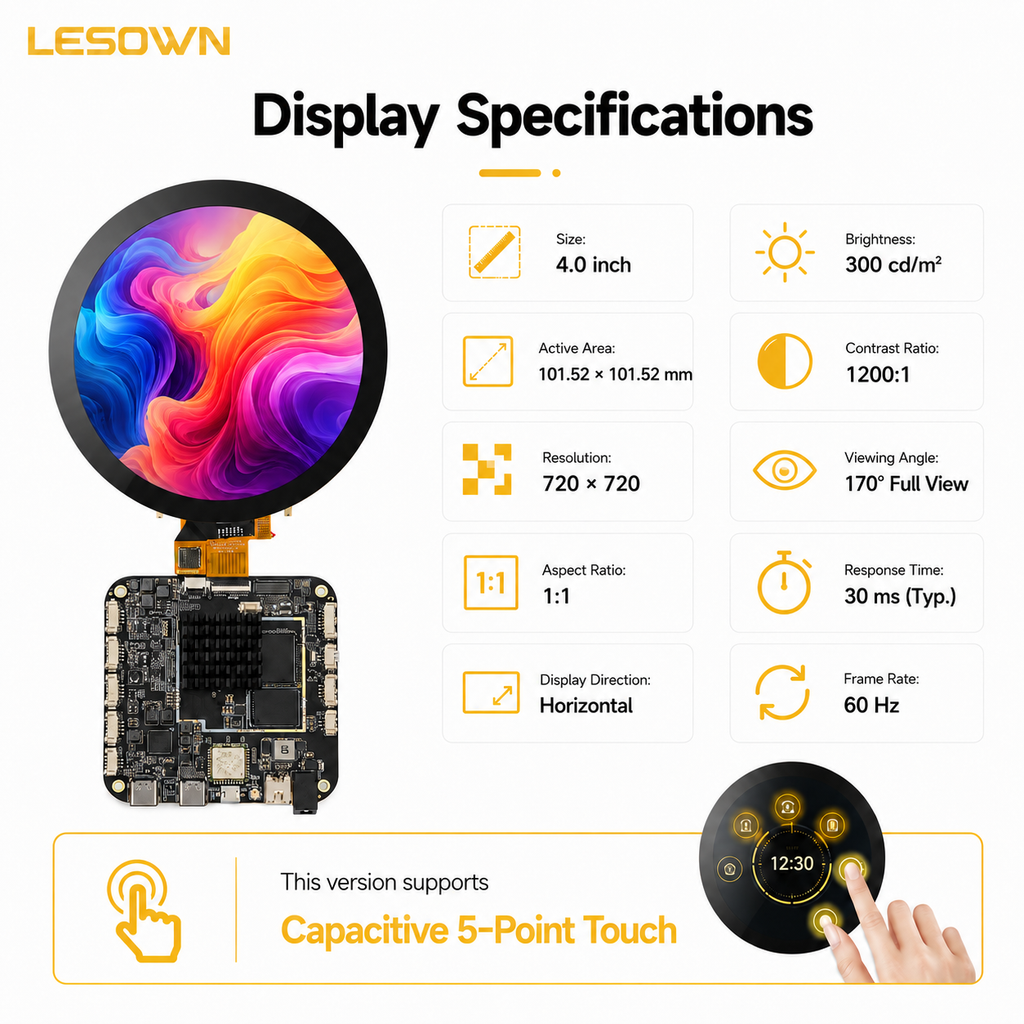

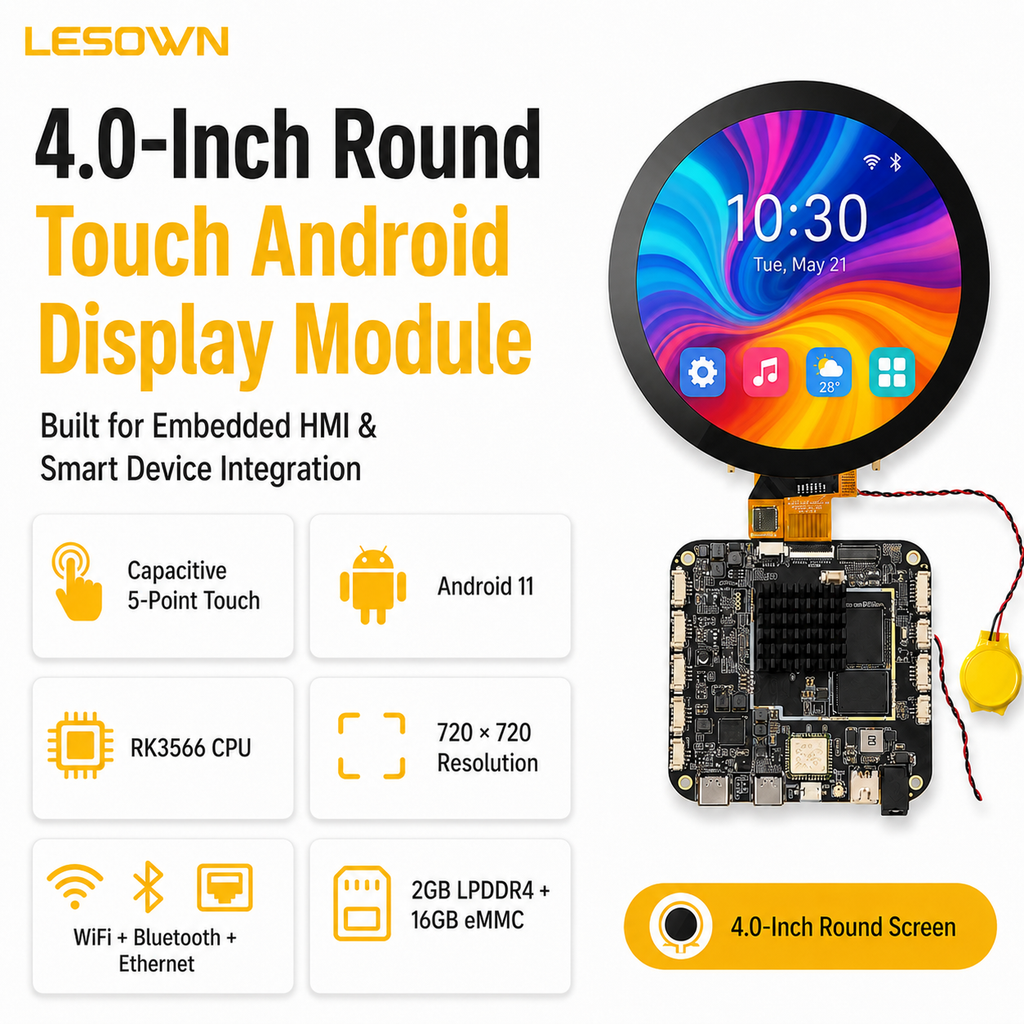

I. Panel Features
-
Size: 4.0 inch
-
Active Display Area: 101.52(W) x 101.52(H) mm
-
Resolution: 720x720 HD
-
Aspect Ratio: 1:1 (Square Display)
-
Display Direction: Horizontal
-
Touch Panel: Capacitive 5-point multi-touch, providing highly responsive and accurate interactive controls.
-
Brightness: 300 cd/m²
-
Contrast Ratio: 1200:1
-
Viewing Angle: 170° Full View (IPS technology for excellent visibility from any perspective)
-
Response Time: 30ms (Typ.)(Tr+Tf)
-
Frame Rate: 60Hz, ensuring smooth visual and touch feedback.

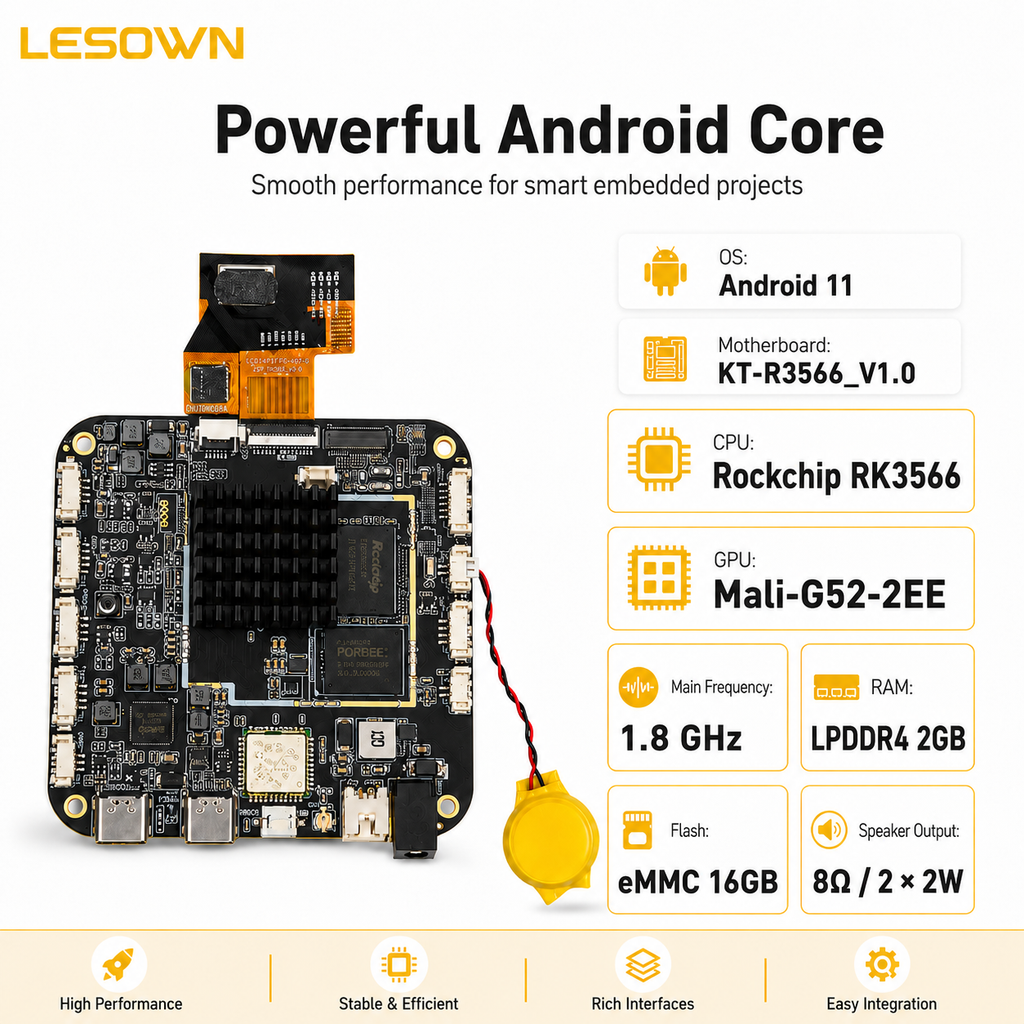

II. Core Functions & Performance
-
Operating System (OS): Android 11, offering a modern, stable, and secure software environment for custom app development.
-
Motherboard Model: KT-R3566_V1.0
-
Processor (CPU): Rockchip RK3566 (Quad-Core), delivering robust edge-computing capabilities.
-
Graphics Processor (GPU): Mali-G52-2EE, perfect for rendering rich, complex graphical user interfaces smoothly.
-
Main Frequency: 1.8GHz
-
System Memory (RAM): 2GB LPDDR4 for seamless multitasking.
-
Built-in Storage (Flash): 16GB eMMC, providing ample space for operating systems, apps, and local data.

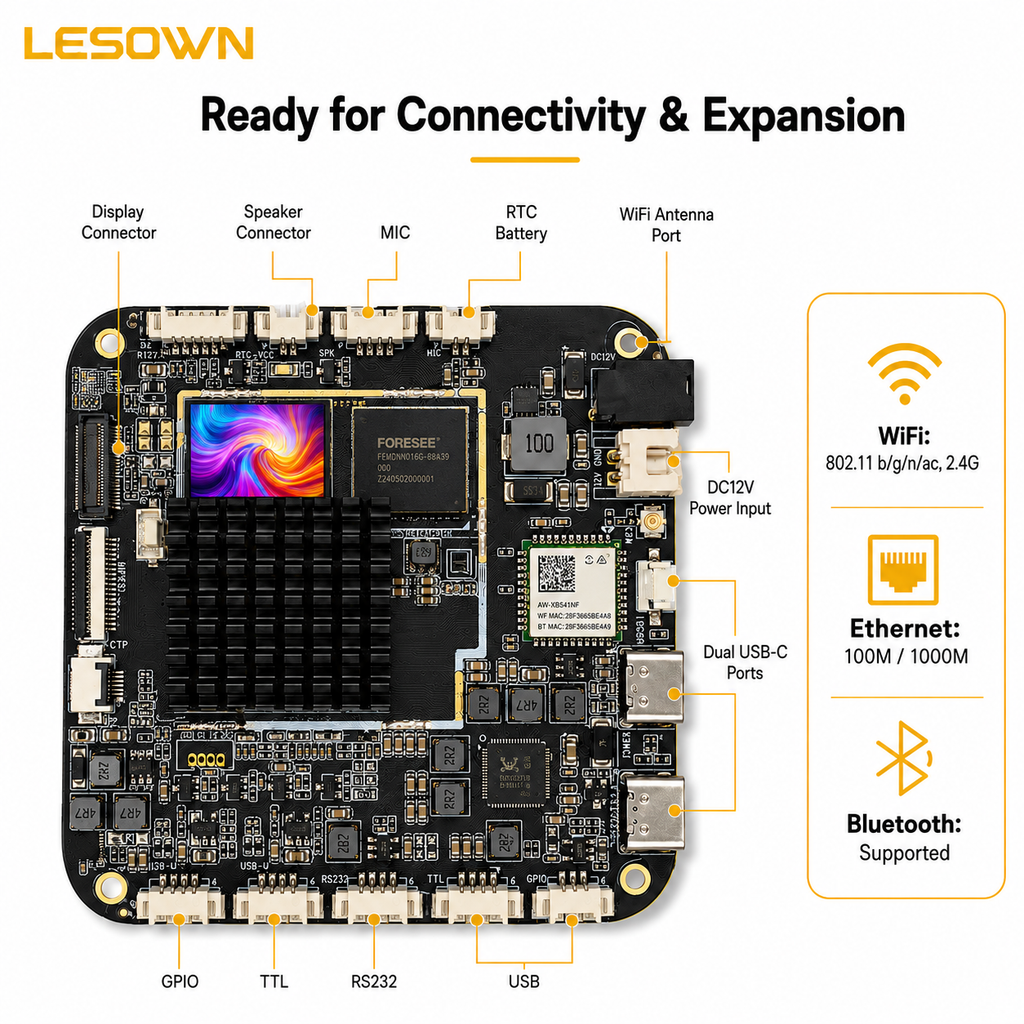

III. Connectivity & Input Ports
-
Wireless Network (WiFi): Built-in WiFi module supporting high-speed 802.11 b/g/n/ac protocols on the 2.4G frequency band.
-
Wired Network (Ethernet): 1x Gigabit Ethernet port supporting 100M/1000M ultra-stable wired connections.
-
Bluetooth: Fully supported for seamless pairing with wireless sensors, peripherals, or mobile devices.
IV. Audio Features
-
Speaker Power Output: Integrated dual-channel audio amplifier.
-
Speaker Specifications: Supports Left and Right channels at 8 Ω / 2W * 2, ideal for integrating voice prompts, operational feedback sounds, and alarms directly into your project.
V. Power Characteristics
-
Power Supply: DC 12V / 1A
-
Maximum Power Consumption: 3.6W (Max). The ultra-low power consumption makes it highly energy-efficient, minimizing heat generation for 24/7 continuous operation in embedded systems.
VI. Mechanical Design
-
Motherboard Dimensions: 75 x 75 x 1.6 mm.
-
Build & Integration: Featuring an ultra-compact motherboard footprint and a highly integrated design, this module is perfectly suited for tight enclosures, wall-mounted panels, or desktop smart devices.
VII. Product Features & Packing List
-
Interactive HMI Solution: Thanks to the built-in 5-point capacitive touch screen, this module is ready out-of-the-box for interactive Human-Machine Interface (HMI) applications, smart home control hubs, thermostats, and industrial control panels.
-
Plug-and-Play Development Kit: Eliminates complex hardware matching; ready for immediate software deployment and testing.
-

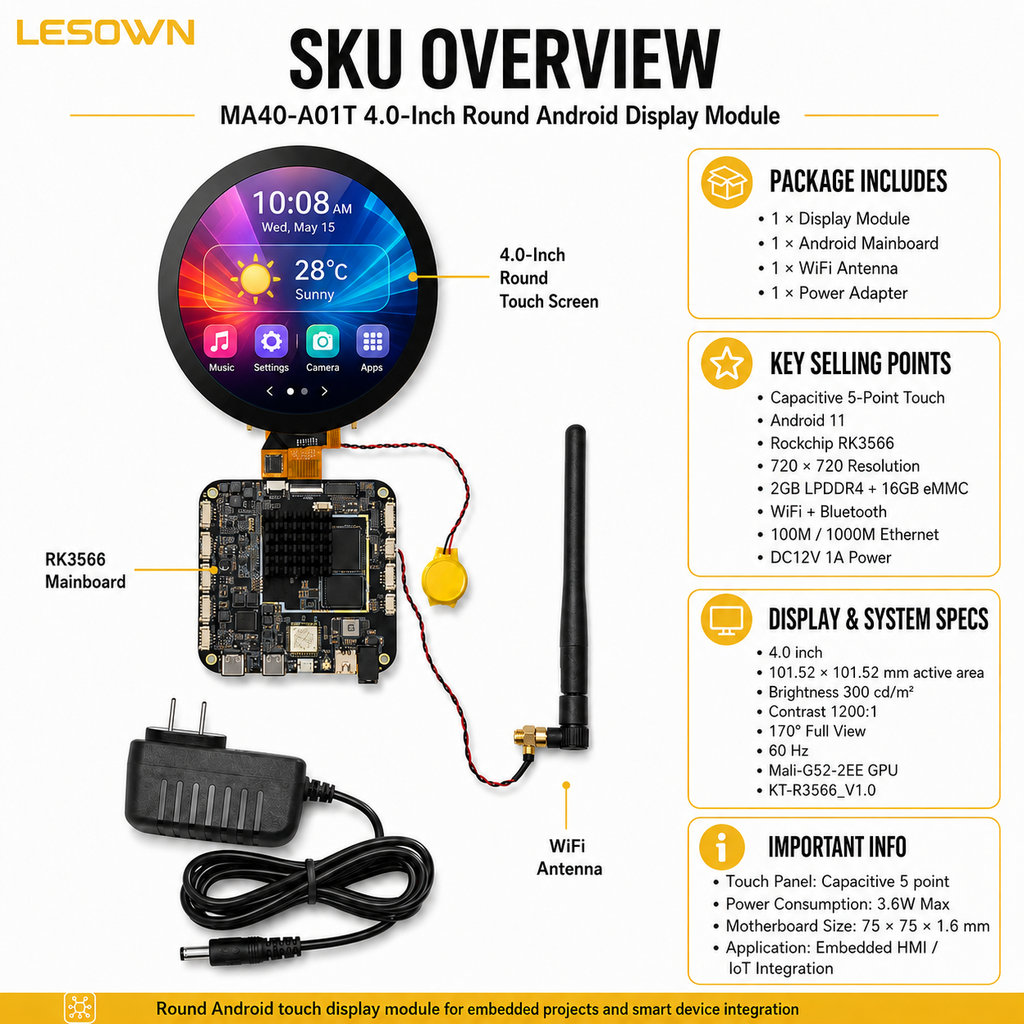

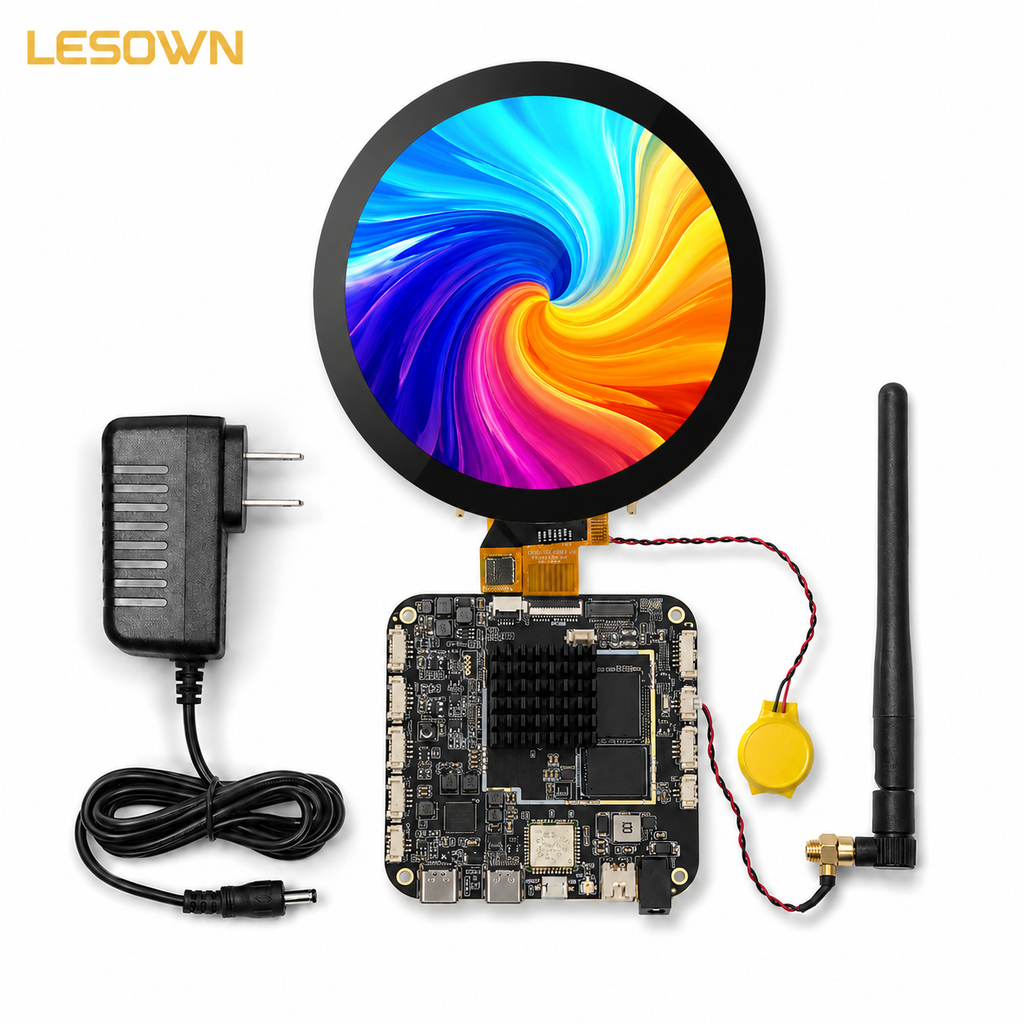

Packing List:
-
1 x 4.0-inch Touch Display Screen Module
-
1 x Android Smart Motherboard (KT-R3566_V1.0)
-
1 x High-Gain WiFi Antenna
-
1 x DC 12V Power Adapter
-
