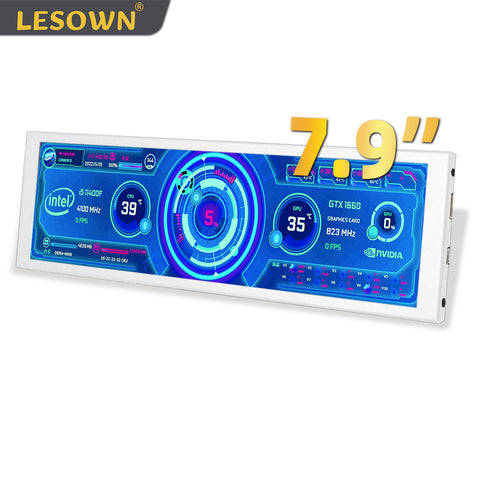

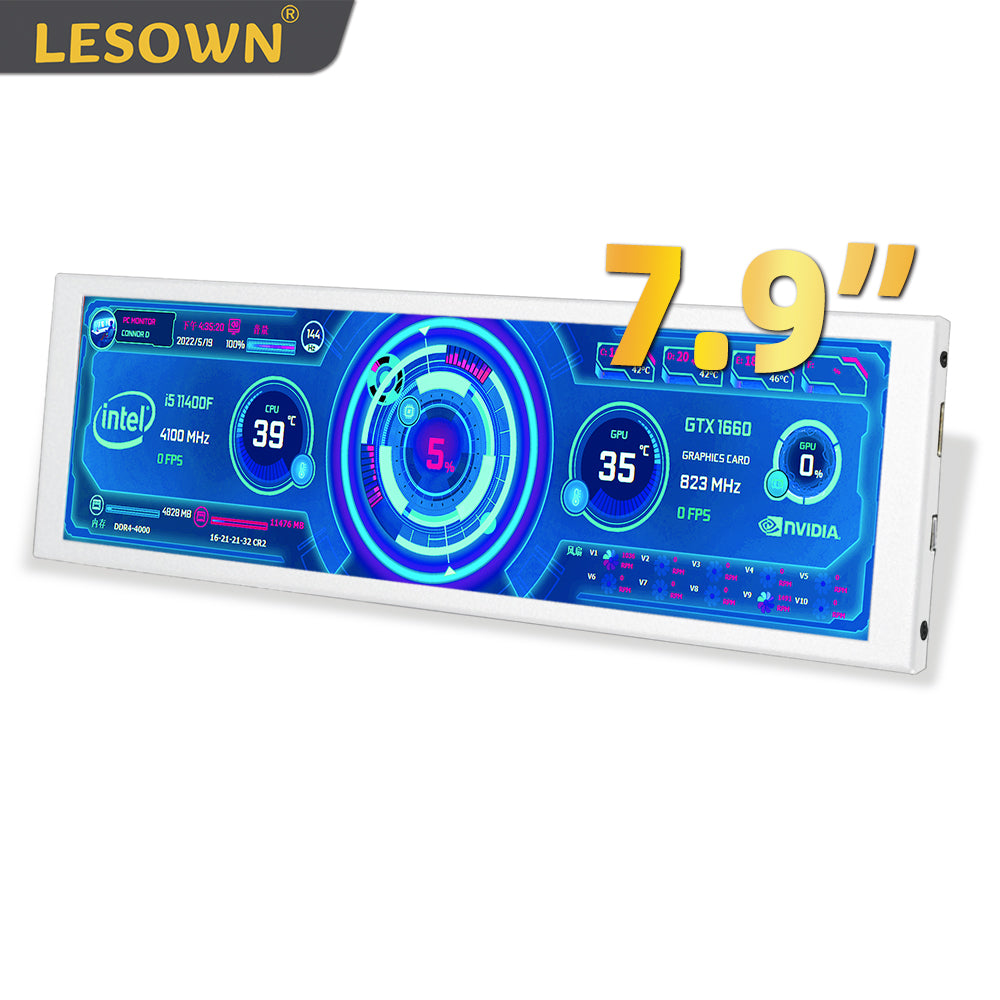

LESOWN P79 7.9 inch 400x1280 Bar LCD Display for PC Case CPU Temperature Monitoring

LESOWN P79 7.9 inch 400x1280 Bar LCD Display for PC Case CPU Temperature Monitoring

180 total reviews

Regular price $76.58 USD
Regular price $97.87 USD Sale price $76.58 USD
Sale Sold out
View full details



Specifications:



Model: P79

Size: 7.9inch TFT-LCD

LCD Type: IPS

Resolution: 400*1280

Touch Function: No

Dot Pitch: 0.1485(H)×0.1485(V)

Signal Interface: MIPI

Refresh Rate: 60Hz

Viewing Direction: Free

View Angle: 170°Full View Angle

Size Ratio: 5:16

Response Time: 40ms(Typ.)(Tr+Tf)

Contrast Ratio: 900:1

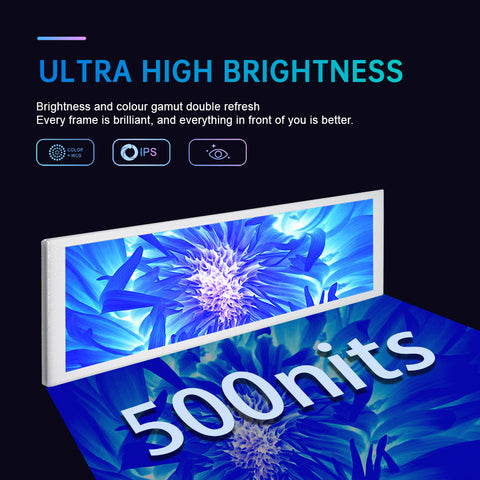

Brightness: 500cd/m²

Outline Dimension: 78.8(W)x217.6(H)x16.5(T)mm

Active Area: 59.40(W)x190.08(H)mm

Color Gamut: 70% NTSC

Display Colors: 16.7M

Backlight: WLED(19.2V (Type.))

Connector: 30pins ZIF

Thickness: 16.5(mm)

Display Input: HDMI 1.4

Audio Out: NO

When used on Raspberry Pi, you need to modify the "config.txt"

Add the following code to the config.txt file:

max_usb_current=1

hdmi_group=2

hdmi_mode=87

hdmi_timings=400 0 100 10 140 1280 10 20 20 2 0 0 0 60 0 43000000 3

Note: If it is Raspberry Pi 4, you also need to comment out dtoverlay=vc4-fkms-V3D.





What's in the box?

1x Portable Monitor

1x USB Cable

1x HDMI Cable
