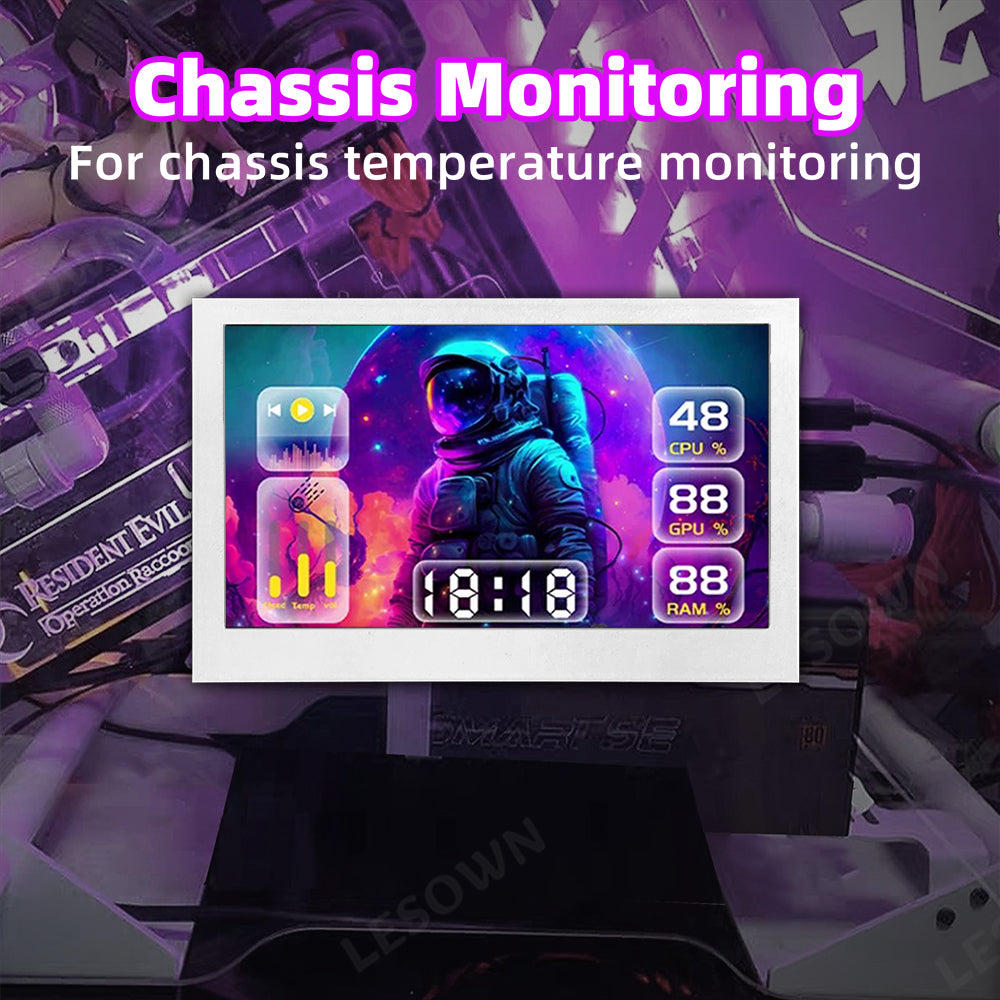

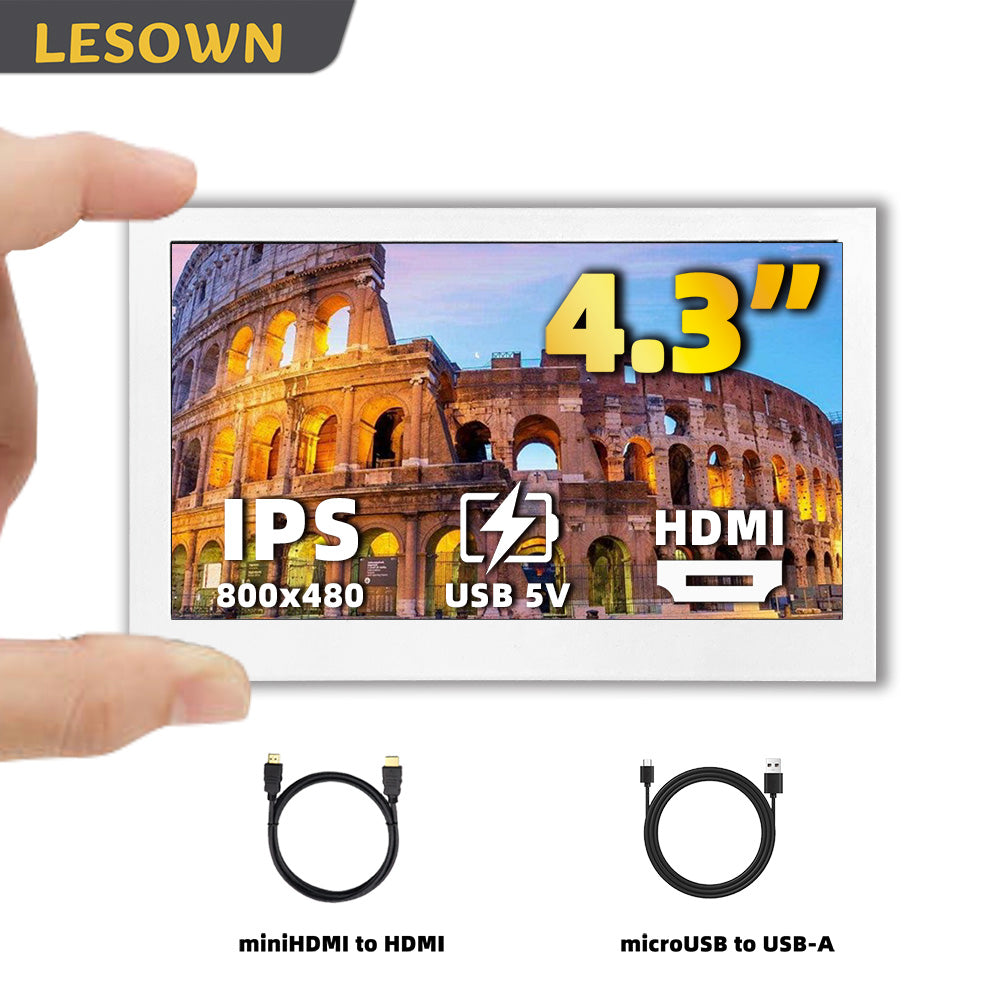

LESOWN P43CW 4.3inch Small HDMI Portable Monitor 800×480with Speakers Portable Temperature Monitoring Display

• Product Type: 4.3 inch Portable Monitor
• Screen Size: 4.3 inch
• Resolution: 800×480
• Panel Type: IPS
• Visual Angle: 160° Full View Angle
• Color Gamut: 50% NTSC
• Refresh Rate: 60Hz
• Touch Function: NO
• Size Ratio: 16:9
• Contrast Ratio: 800:1
• Brightness: 300cd/m²
• Speakers: Yes
• Audio Jack: Yes

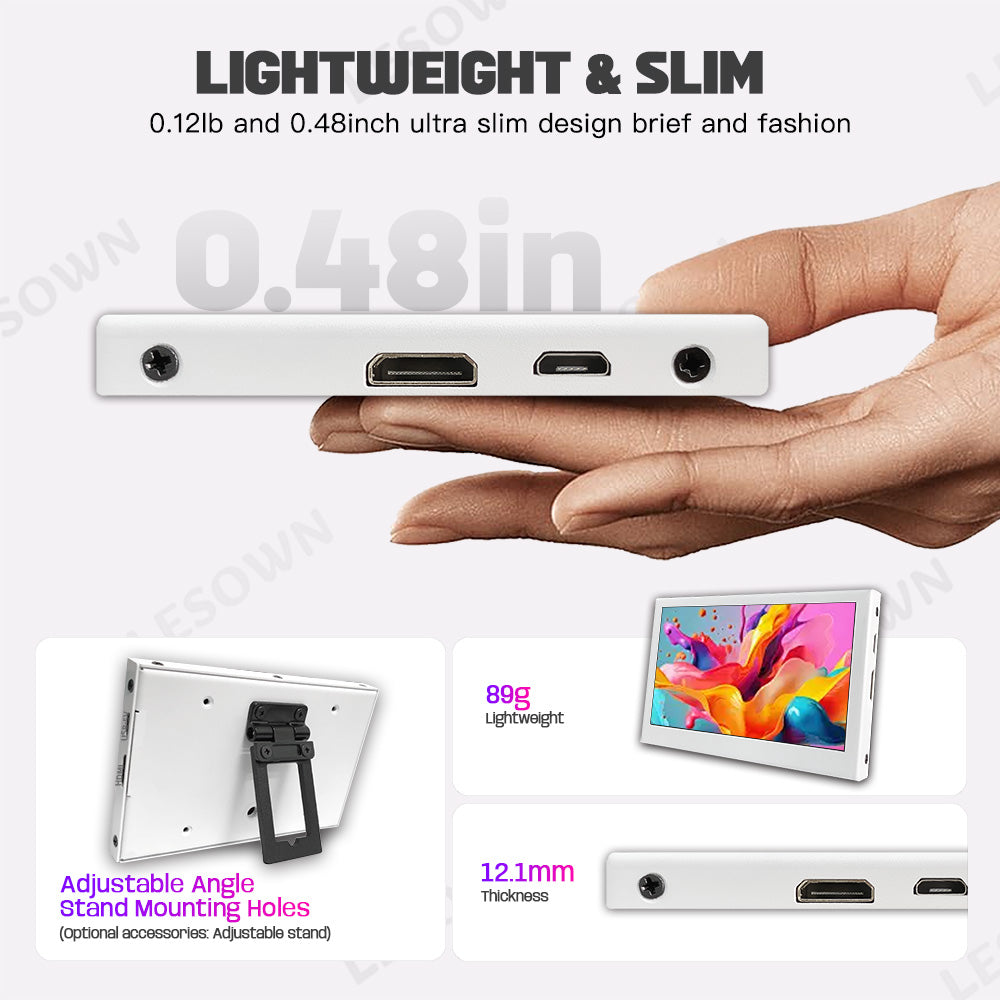

• Weight: 89g

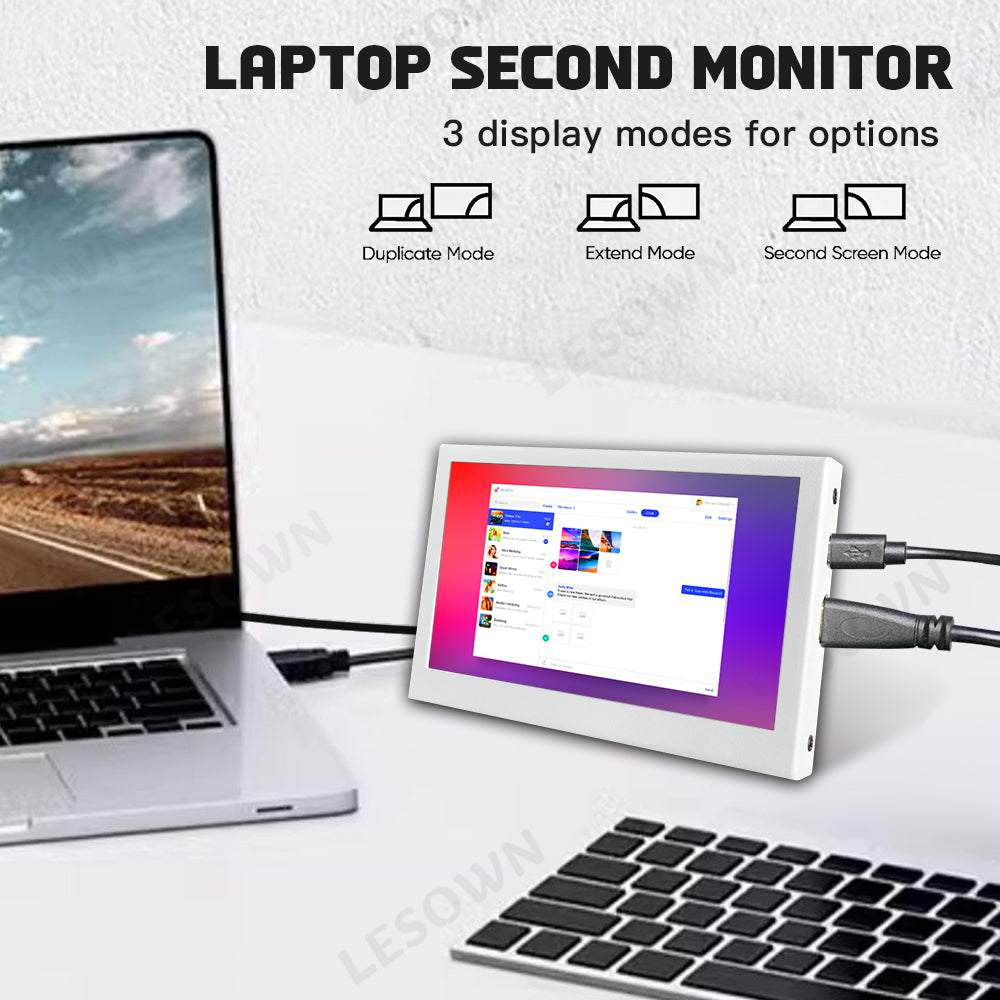

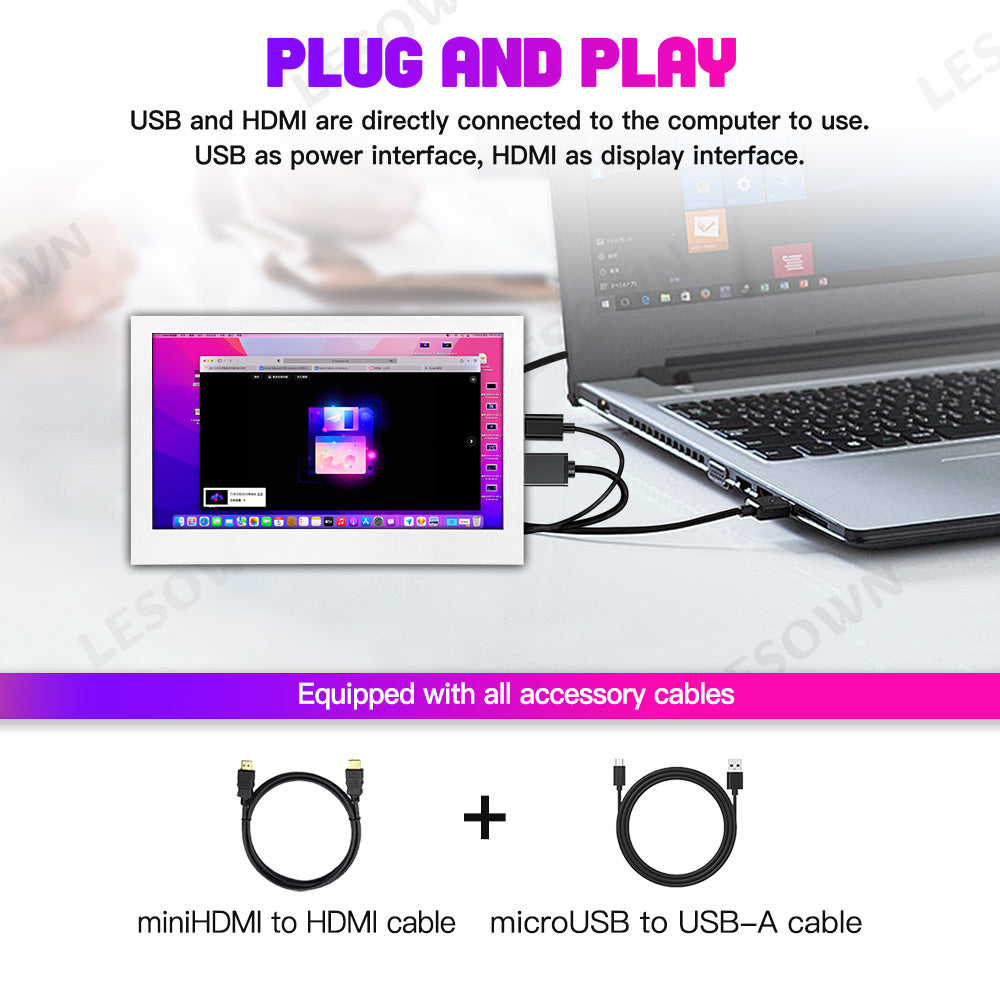

1. Connect the monitor's USB-5V interface to the PC's USB port using the micro USB cable.
2. Connect the monitor's HDMI interface to the PC's HDMI port using a standard HDMI cable.
3. Wait for the display to show the image.

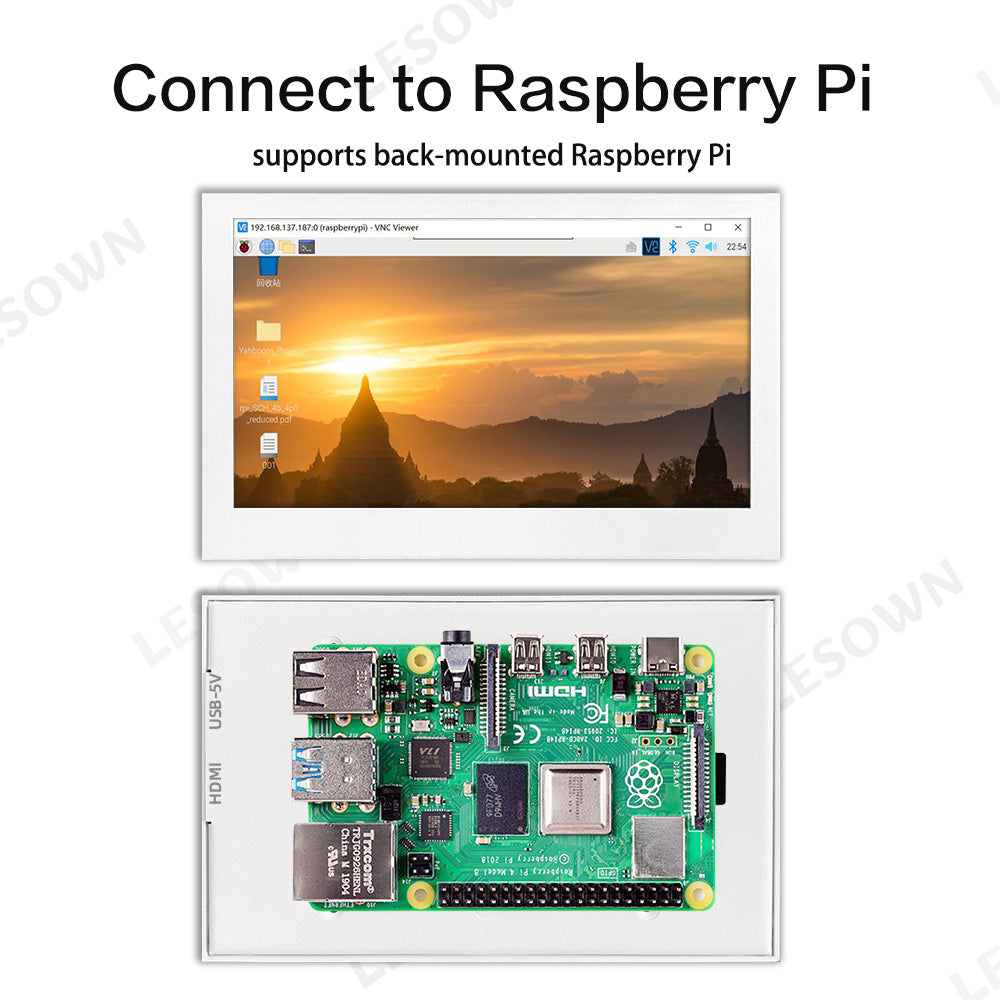

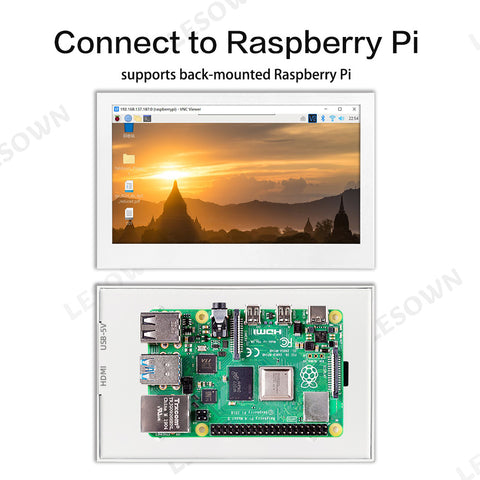

1. Insert the TF card into the Raspberry Pi.
2. Connect the monitor's USB-5V interface to a USB port on the Raspberry Pi.
3. Connect the monitor's HDMI interface to the HDMI port on the Raspberry Pi.
4. Power on the Raspberry Pi, and the LCD will display the image.

Note: Raspberry Pi does not support hot-plug and auto-recognition of the resolution. You need to configure the resolution manually, otherwise the display may not work normally.

1. Install the official Raspbian image


   • Download the latest image from the Raspberry Pi official website.
   • Follow the official tutorial to install the system.


2. Modify config.txt




   After step 1 is completed, open the config.txt file in the root directory of the Micro SD card and add the following code at the end of the file:


   plaintext

   max_usb_current = 1
   hdmi_force_hotplug = 1
   config_hdmi_boost = 7
   hdmi_group = 2
   hdmi_mode = 87
   hdmi_drive = 2
   hdmi_cvt 1024 600 60 6 0 0 0






3. Insert the micro SD card into the Raspberry Pi, connect the Raspberry Pi and the monitor with the HDMI cable and USB cable, then power on the Raspberry Pi. If the display works normally, the configuration is successful.




   (Please use a full 2A power supply.)



1. The "USB-5V" interface of the monitor must be directly connected to the host computer; do not use an external power supply.


   (The power supply needs to be more than 5V/2A, otherwise the screen may flicker due to insufficient power.)
2. After completing the above operations, please restart the host (Raspberry Pi / PC).
3. We recommend using the original cables to ensure proper signal transmission.

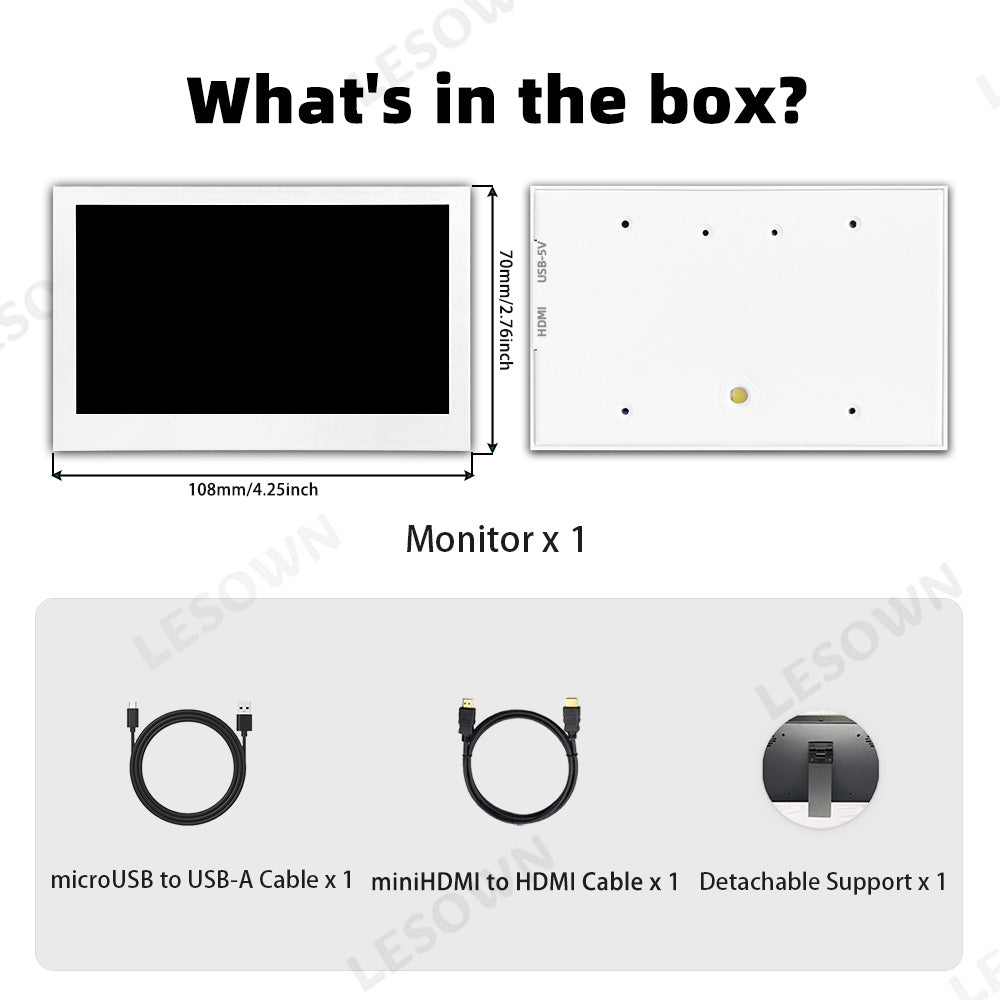

• 1x Portable Monitor
• 1x micro USB Cable
• 1x HDMI Cable
• 1x Stand
