Specifications:
I. Display Performance
Screen Size：7.0 Inch
Screen Type：TFT-LCD
Panel Type：IPS, Normally Black, Transmissive
Resolution：800x480 / 1024×600 (Physical)
Supported Resolution Range：640×480 – 1600×1200 (Adjustable)
Active Area：85.92(W)×154.21(H)mm
Outline Dimension：100(W)×163.9(H)×2.8(T)mm
Viewing Angle：ALL 85/85/85/85 (Typ.)(CR≥10) [Left/Right/Up/Down]
Dot Pitch：0.1506(W)(RGB)×0.1432(H)
Display Color：16.7M
Surface Luminance：400cd/m² (Typ.)(TM)
Contrast Ratio：800:1 (Typ.)
Backlight：WLED
Input Voltage (LCD)：9.6V (Typ.)
Touch Screen：Not Support
Signal Interface：24bit RGB, 50pins ZIF Connector
II. HDMI LCD Controller Board
Board Model：For 50PIN TTL Interface LCD Screen
Board Size：70.2mm×49.5mm
Video Input：HDMI (HDMI1.2)
OSD Control：Brightness, Contrast, Auto, Language, etc.
Language Support：English, French, German, Spanish, Italian, etc.
Standby Mode：＜1W (No Input Signal)
Power Supply：5V DC ≥1A–2A (USB / Power Bank applicable)
Power Protection：Positive and negative polarity must not be reversed
III. Product Features
- Plug & Play: No app or driver required
- Image Adjustment: Support up/down/left/right flip; 4:3 / 16:9 format conversion
- Compatibility: Raspberry Pi 4 / 3 / 2 Model B, PC, Xbox 360, gaming monitor
- Application Scenarios: Mobile DVD, digital photo frames, car systems, multimedia & audiovisual systems
- Power Supply for Raspberry Pi Mainboard Supported
IV. Power Requirements
Operating Voltage：5V
Operating Current：＞1A
Car Power Supply：Need transformer to step down voltage

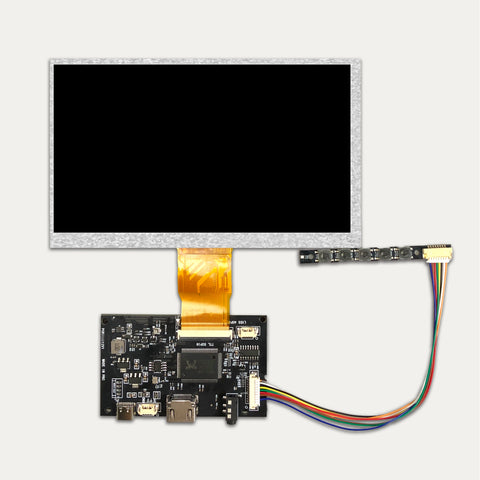

What’s included?
1×HDMI Input LCD Controller Board
1×7.0" M070TN-32 1024×600 IPS LCD Screen
1×Keyboard With Cable
1×Power Cable
